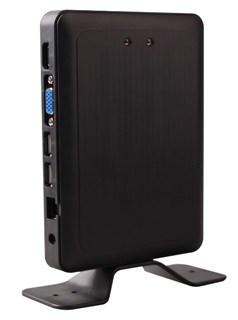

HRTC-Y2

Cost-effective thin client HRTC-Y2

RDP 7.1 remote connection

  • HRTC-Y2 features cost-effective and high-security as it is one RDP device that enables multi users work independently.

High compatibility with all servers

  • HRTC-Y2 supports all windows or linux server, including windows 8 and multi point server 2011/2012.

Smart and simple design

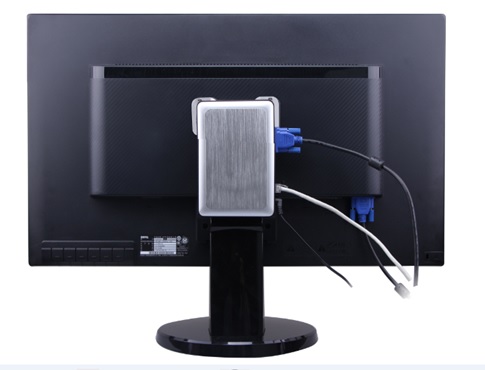

  • Fanless motherboard & can be mounted, HRTC-Y2 brings the users a clean working environment without noise.
  • With All winner A20 CPU, HRTC-Y2’s operating speed is 70% faster than the other thin client supplied at similar price, especially in MS office operating and browsing.

Easy to install and operate

  • The simple user interface of HRTC-Y2 makes RDP connection faster, with the multi user’s patch provided, user can connect to all kinds of server easily and independently.

Applied in various industries

  • With good performance in mic and speaker, HRTC-Y2 is very popular used for education, enterprise, call center, cyber cafe, real estate etc.

Multi-language Available.

  • Multi-language selection (System User Interface):
  • English, French, Japanese, Thai, Portuguese, Spanish, Indonesia, Chinese.

To share 1 PC with multi users, Nplay HRTC-Y2 connects with the host server by RDP 7.1 protocol, it is free to use the software in the host in RDP connection, such as office software, financial software, ERP software, real estate software, airline flight information software etc. HRTC-Y2 adopts the world’s most stable ARM frame with low consumption (＜5W), plays a leading part in achieving the cloud computing function on the LINUX platform,HRTC-Y2 provides various ports, such as

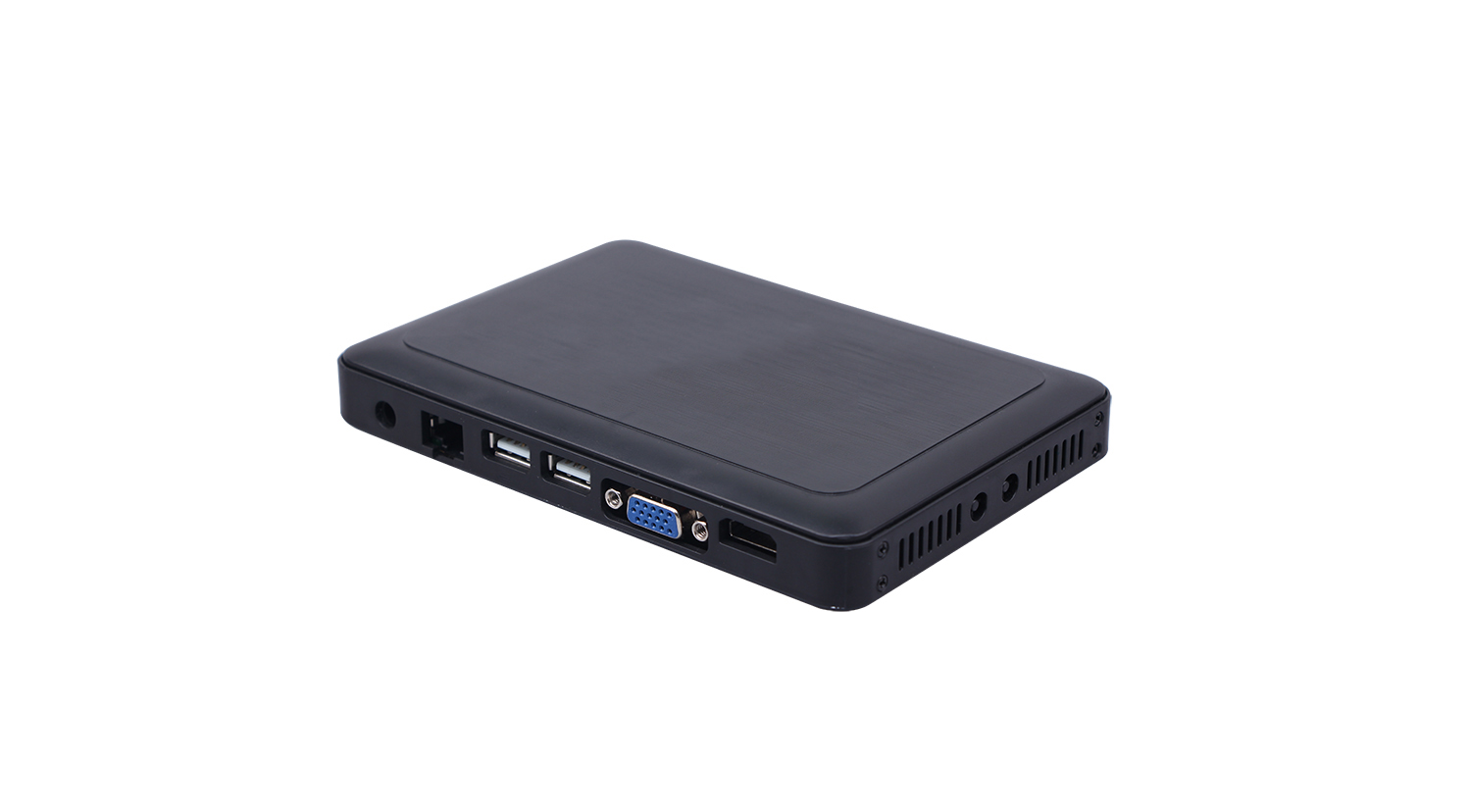

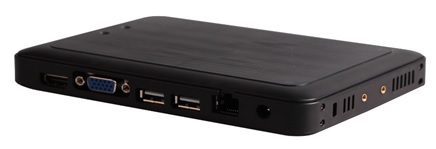

HDMI port, VGA port, USB 2.0 port, LAN port, WIFI port. Nplay HRTC-Y2 supports the industrial scanning gun, network printer, USB flash disk perfectly.

Specifications :

  • CPU Model All winner A20 dual-core 1.2G
  • Protocol RDP 7.1
  • RAM DDR3 512MB
  • Flash 4GB
  • WIFI Optional(150Mbps)
  • Resolution VGA: 800*600, 1024*768,1366*768,1280*1024, 1440*900 HDMI: 1280*720P,1920*1080P
  • OS supported Windows 7/8/10/2008/2012/Linux

  • I/O

  • Output 1*HDMI,1*VGA,4* USB2.0,1*Audio output
  • Input 1*power 5V-2V,1* LAN,1* Audio input,1*WIF

  • Appearance

  • Shell color Black
  • Size 15.5*10.5*1.5cm
  • Net Weight of Machine 0.3KG
  • Power 5V/2A
  • Consumption 5W-7W

Accessories :

  • User manual, Adaptor, Remote control, Stand.
